BL-CH4 MINI 3 Pro Methane detector

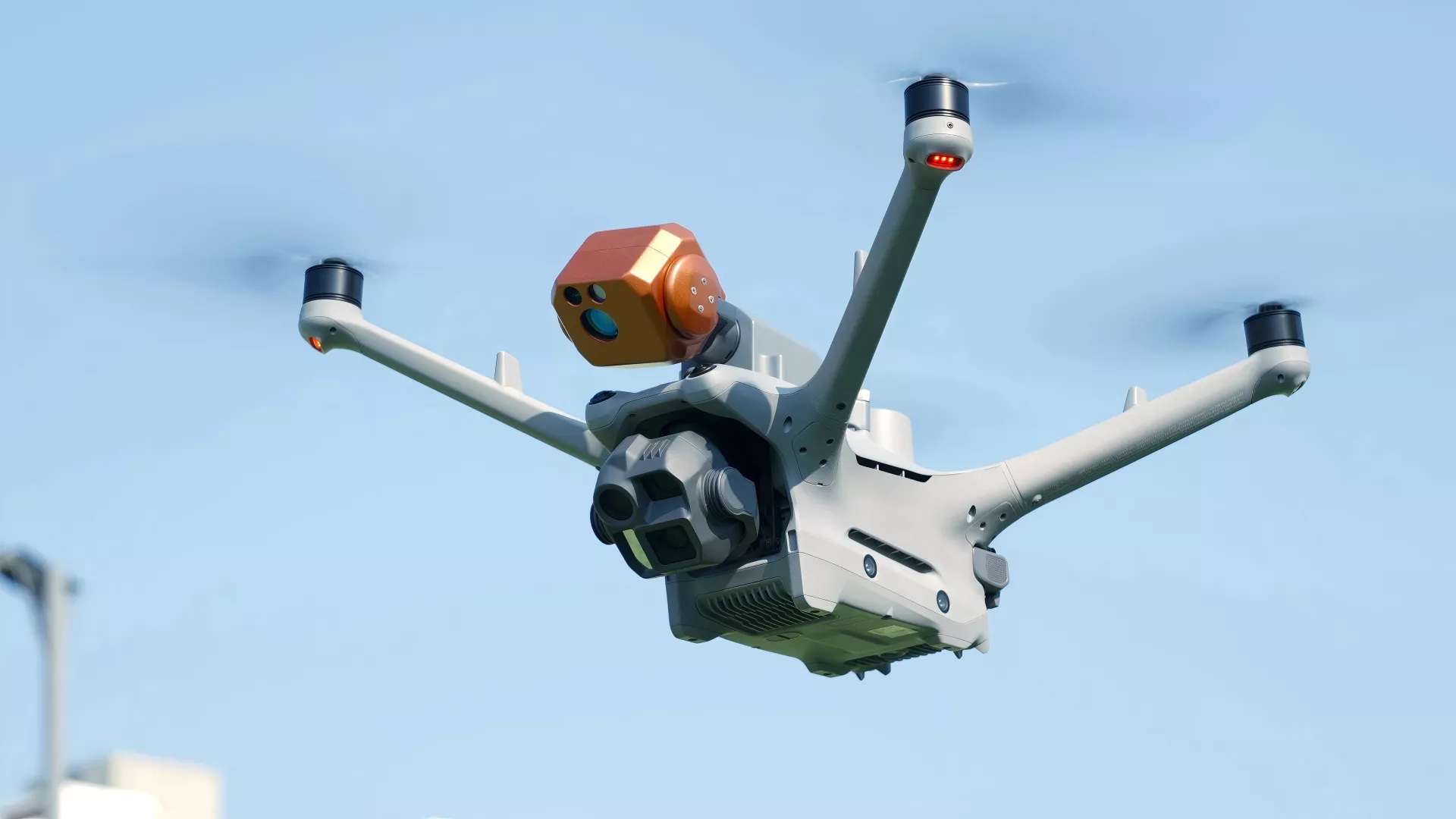

The BL-CH4 MINI 3 Pro UAV-based Methane Detection Sensor is an advanced system designed to detect and map methane(CH4)concentrations with high precision and accuracy based on TDLAS Technology. Seamlessly integrated with DJl Dock 3,it is highly compatible to Matrice 4D/4TD, the system significantly reduces the cost and boosts the efficiency for unmanned inspections on industrial sites and pipeline leakages, opening up infinite possibilities.
BL-CH4 MINI 3 Pro Methane detector
Key Performance
Equipped with a professional surveying and mapping lens, BL-CH4 MINI 3 has extraordinary performance during flight mission.
Detection distance
Up to 70m
Response time
20 ms
Light weight
240g
Discrepancy
士 10%
SPECIFICATION
Product No: BL-CH4 MINI 3 Pro
Product name: UAV Methane detector
Working Principle: TDLAS
Compatible platform: DJl Dock 3, Matrice 4D/4TD
Interface: E-Port
Gimbal: 2-axis stability enhancement (Pitch. Roll)
Gimbal Angle: 士0.01°
Detection distance: 1~50m （according to different reflector and conditions）
Detection range: 0~100000ppm*m
Discrepancy: 土10%
Sensitivity: 5ppm*m
Response time: 20ms
IP Rate: lP55
Detection laser: Class l, eye safety
Indicating laser: Class lll,eye damage
Operating temperature: -25-60C
Working humidity: < 95%RH (+25°C)
Power consumption: 3W
Weight (including gimbal): 240gSize: 60*70*60mm
Application Scenario
- Pipeline Leakage Detection
- Refinery Detection
- Offshore Gas Detection
- Chemical Plants Gas Inspection
- Landfill Gas Inspection
- Fire Warning
