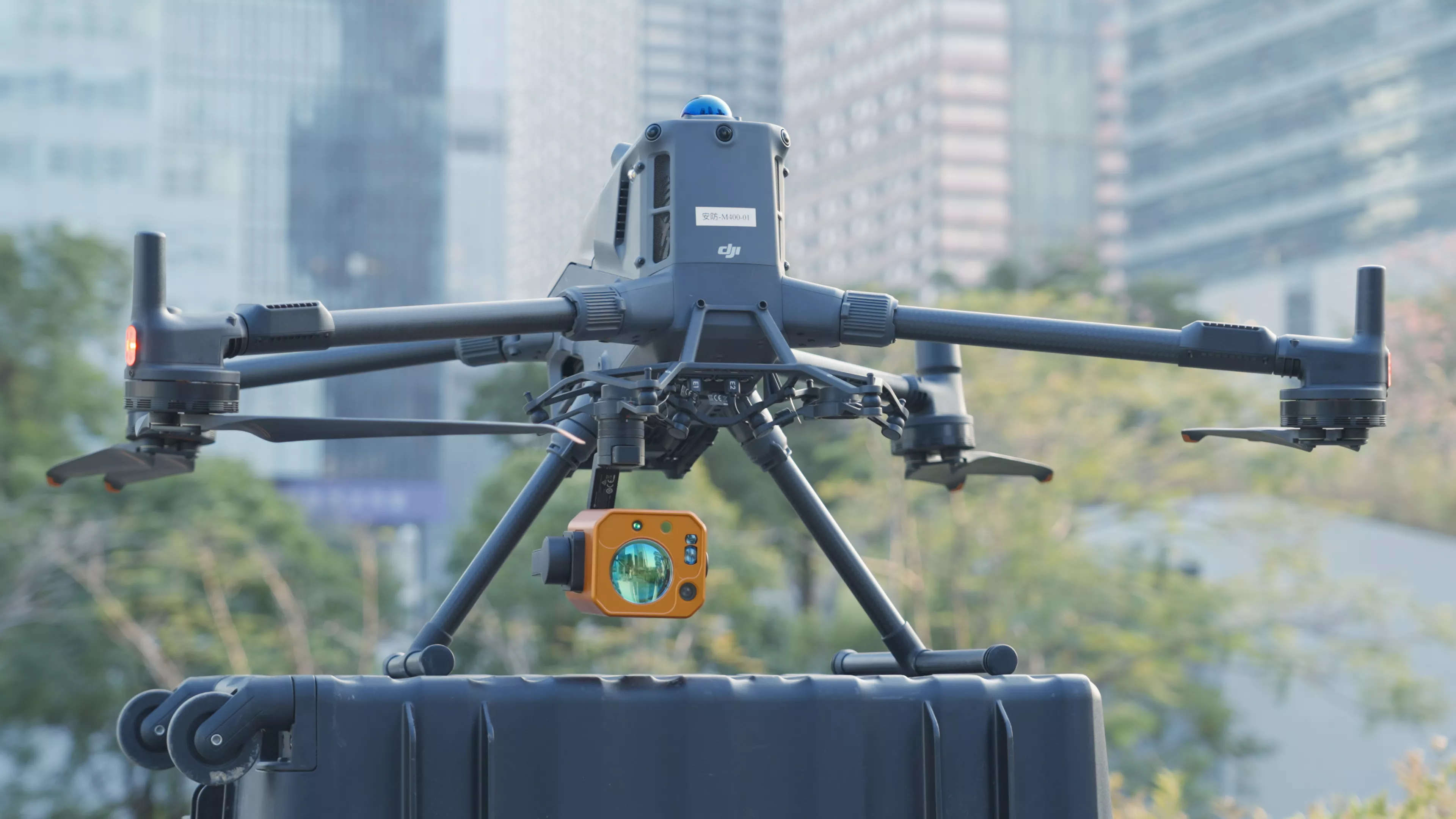

BL-CH4 400 UAV Laser Methane Leak Detector
The BL-CH4 400 is a light-weight, high-sensitivity gas detector based on Tunable Dlode Laser Absorption Spectroscopy(TDLAS),which enables rapid identification of methane from up to 300m away, or at a concentration as low as 5ppm. m. The device cleverly combines the detection laser with the precise calibration of the visible light sensor to achieve accurate visual inspection; cooperating with the intelligent stabillzation control technology of the gimbal, it can quickly provide users with crucial information to help users grasp the opportunity, and improve the perception ability and operation efficiency to a new level.
BL-CH4 400 UAV Laser Methane Leak Detector
Key Performance
Equipped with a professional surveying and mapping lens, BL-CH4 400 has extraordinary performance during flight mission.
300m telemetry distance
5ms response speed
Precise locationof leak point
Monitoring data is sent tothe cloud in real time
BL-CH4 400 SPEC SHEET
Detection object: methane and gases containing methane
Gimbal Stabilization: YAW+PITCH+ROL
Camera: 13MP 4XOptical Zoom
Video resolution: FHD1920*1080
Sensitivity: 1ppm*m
concentration range: 0~99999 ppm*m
Measurement discrepancy: ±10% (range from 100~50,000ppm*m)
Response speed: 5ms
Detection distance: 1~300m(according to different reflector and conditions)
Laser ranging: real-time coordinate function
Compatible Platform: DJI 350, DJI M400
Weight: < 770g
Protection Level: lP55
Operating temperature: -20°C to 50°C
Rated current: < 1 A Typical value 8V power supply current 0.3 A
Rotation range: Pitch: +30° to -95°: Roll: +60°
Route function: route planning, KML import, terrain follow
Supported models: standard interface, support customization
Infrared detection laser: Class 3R, avoid direct laser to eyes
Wavelength: 1.65 um.<25 mWGreen indicator laser: Class 3R, avoid direct laser to eyes
Wavelength: 520 nm,< 5 mW
Application Scenario
- Pipeline Leakage Detection
- Refinery Detection
- Offshore Gas Detection
- Chemical Plants Gas Inspection
- Landfill Gas Inspection
- Fire Warning
