BL-PT150

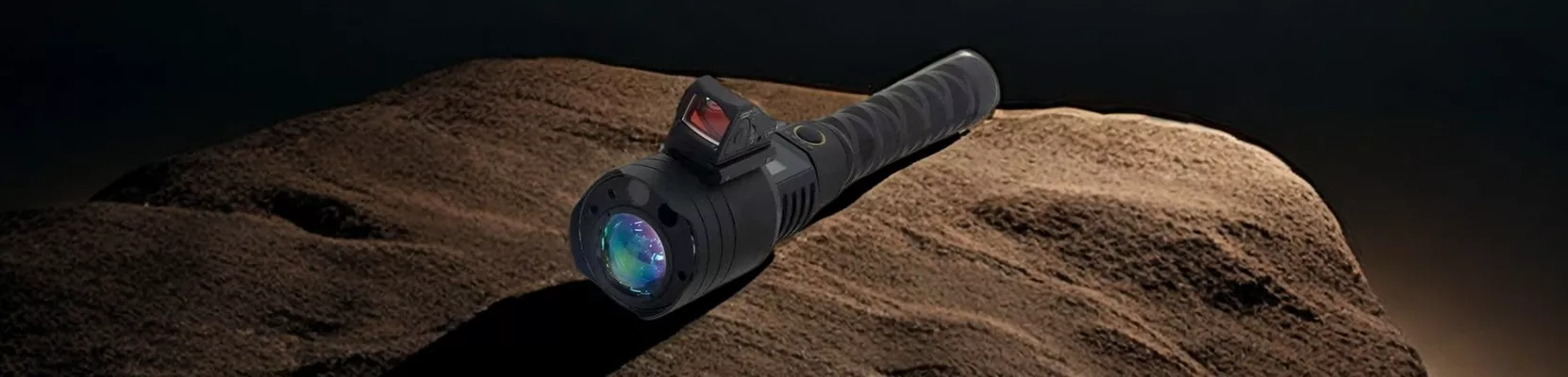

Portable TDLAS Methane Detector
The BL-PT150 portable methane detector uses a tunable diode laser to emit light at a wavelength absorbed by methane. By measuring how much of that light is absorbed, the device infers methane concentration. The test distance can reach 200 meters and the reaction speed is 0.02 seconds. And it combines high precision with convenient field usability, making it an ideal tool for gas leak inspection, emergency response, and routine maintenance.

Key Performance
Portable TDLAS methane detectors offer a combination of high precision, safety, and convenience, making them indispensable tools for utilities, oil & gas operators, and environmental monitoring teams seeking efficient and reliable methane leak detection.
Detection distance
Up to 150m
Response time
20 ms
Light weight
870g
Discrepancy
士 10%
Specification
Technicial Document

Model: BL-PT150

Measuring: Gas Methane

Measuring Range: 0-99,999 ppm.m or higher (Remote Detection)

Maximum Measuring Distance : 0~150m (Test Conditions: 90% diffuse reflectivity target, 15,000 ppm·m CH₄ concentration, static level detection)

Sensitivity : 5 ppm.m

Alarm type : Visible, audible and vibration (via APP on phone)

Measuring type : Laser beam

Ingress Protection Rating: IP68

Explosive-proof class : Ex ib IIC T4 GB

Sensor Life : 10 years

Display : OLED

Extra Feature : Only Respond to Methane

Battery: Rechargeable Lithium-ion battery

Working time : Minimum 10 hours

Accessories : Charger, Belt, screen cover

Warranty : One year

Detection Decrepancy : ±10% (1000-100000ppm.m)

Operating temperature: -20℃ to 50 ℃

Weight: 870g

Detection Range With Different Reflector Background Test
(varies due to different reflectivity and concentration)
Regulatory Alignment

Designed to support methane monitoring, emissions management,
and secure data workflows aligned with internationally recognized regulations and industry frameworks.

EU Methane Regulation

Regulation (EU) 2024/1787

Supports methane inspection workflows, LDAR documentation, and inspection record management.

OGMP 2.0

Oil & Gas Methane Partnership

Supports methane detection, emissions data collection, and reporting workflows.

GDPR

General Data Protection Regulation

Supports secure data management, role-based access control, and data governance workflows.
