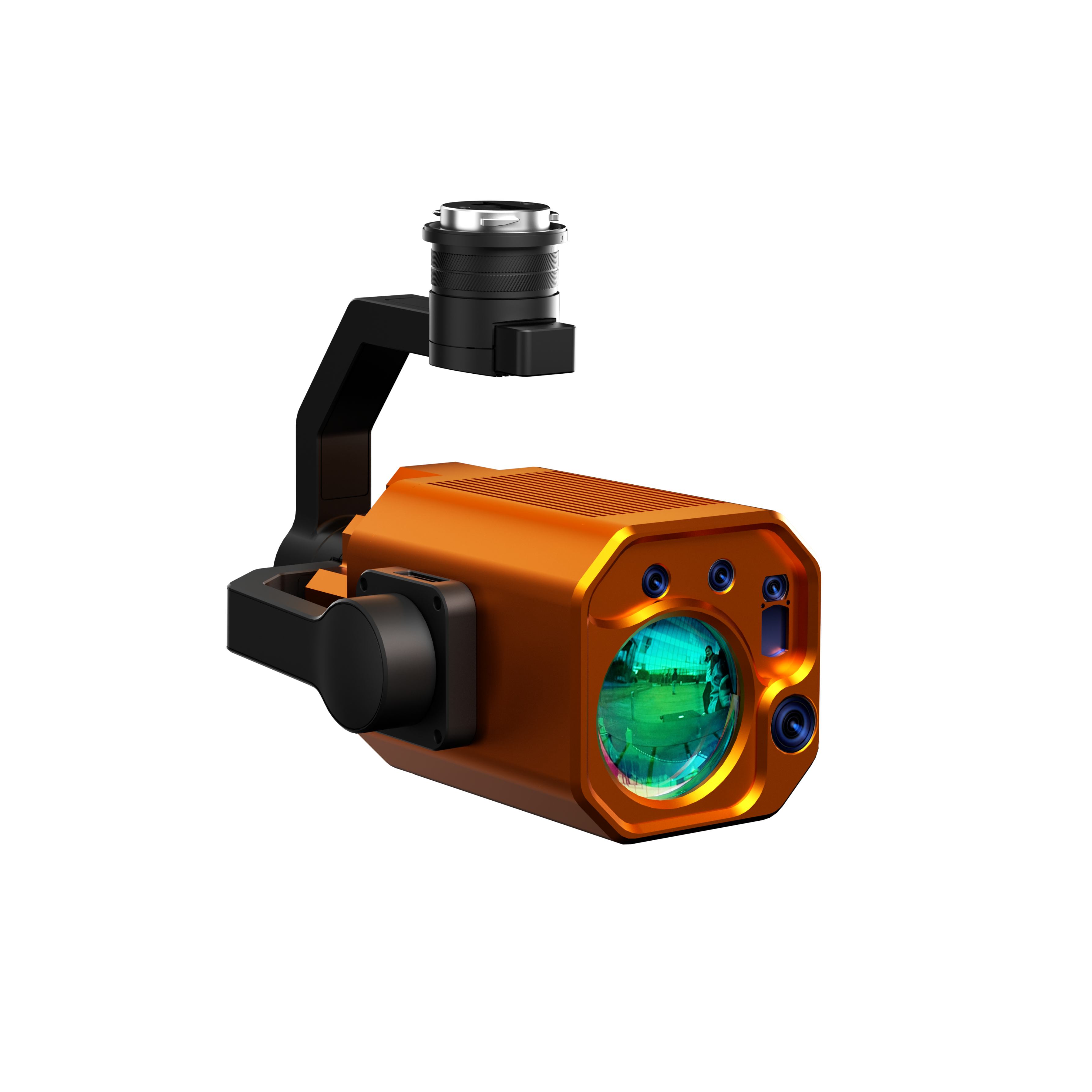

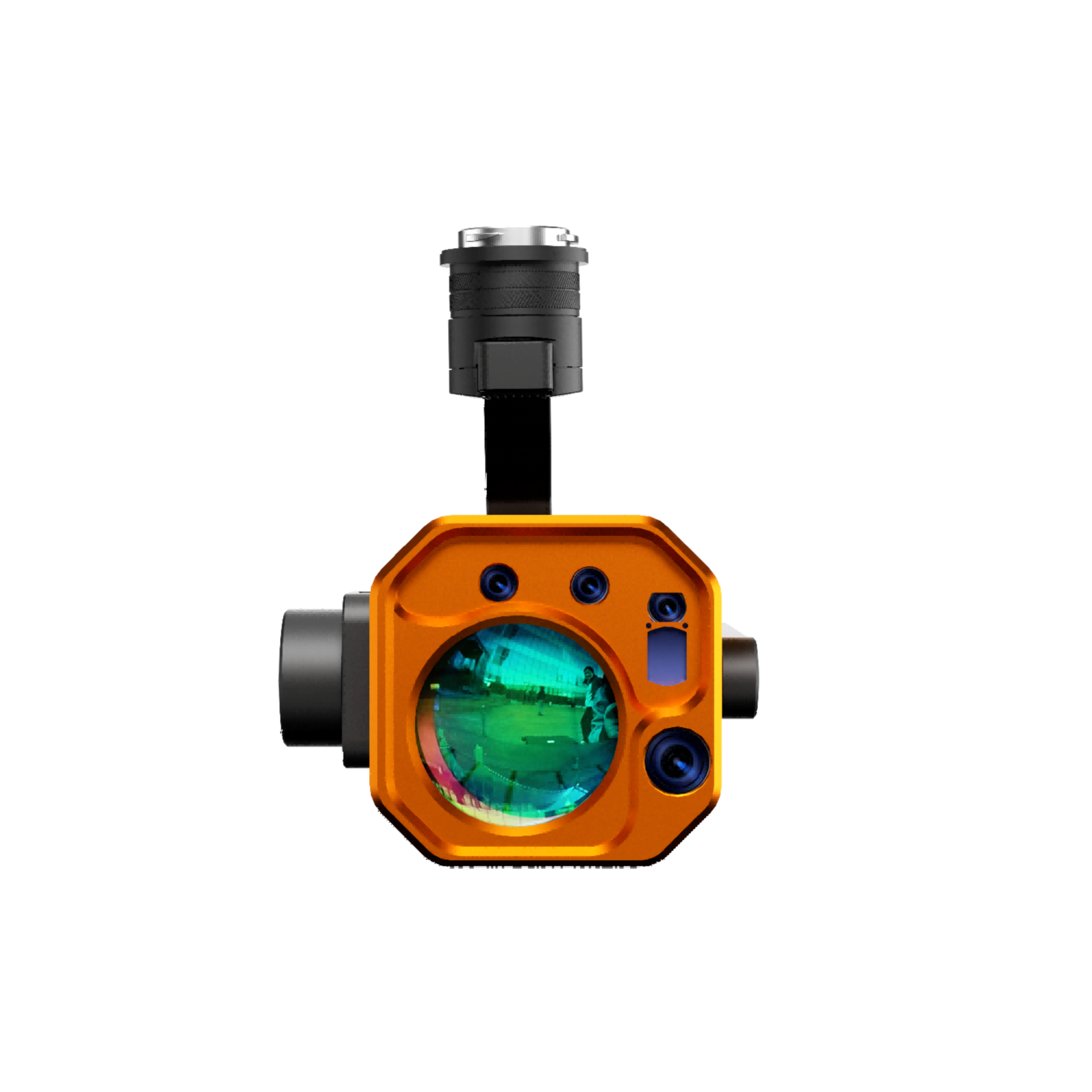

BL-CH4 400
Drone-based Methane Detection Sensor

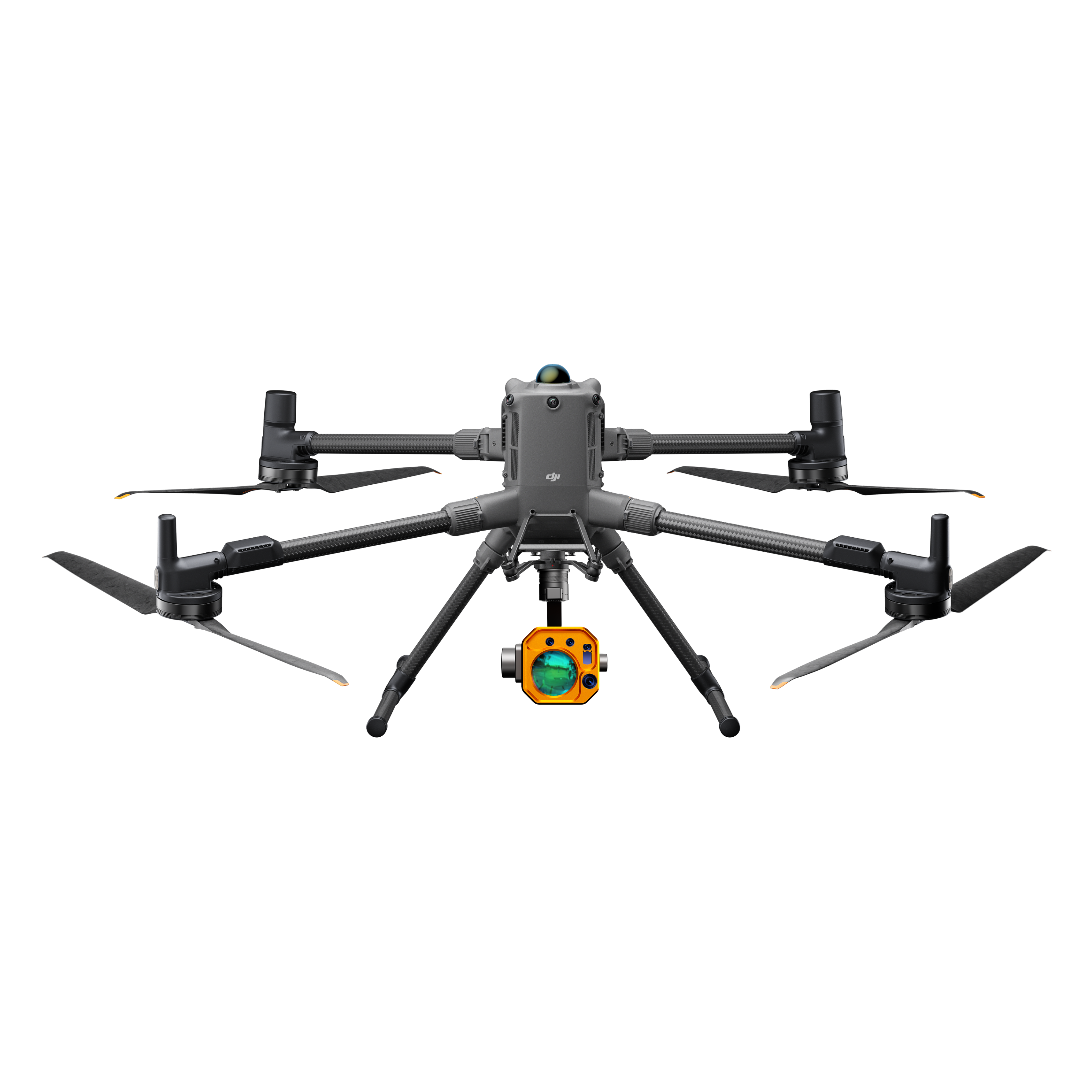

For DJI M350/400

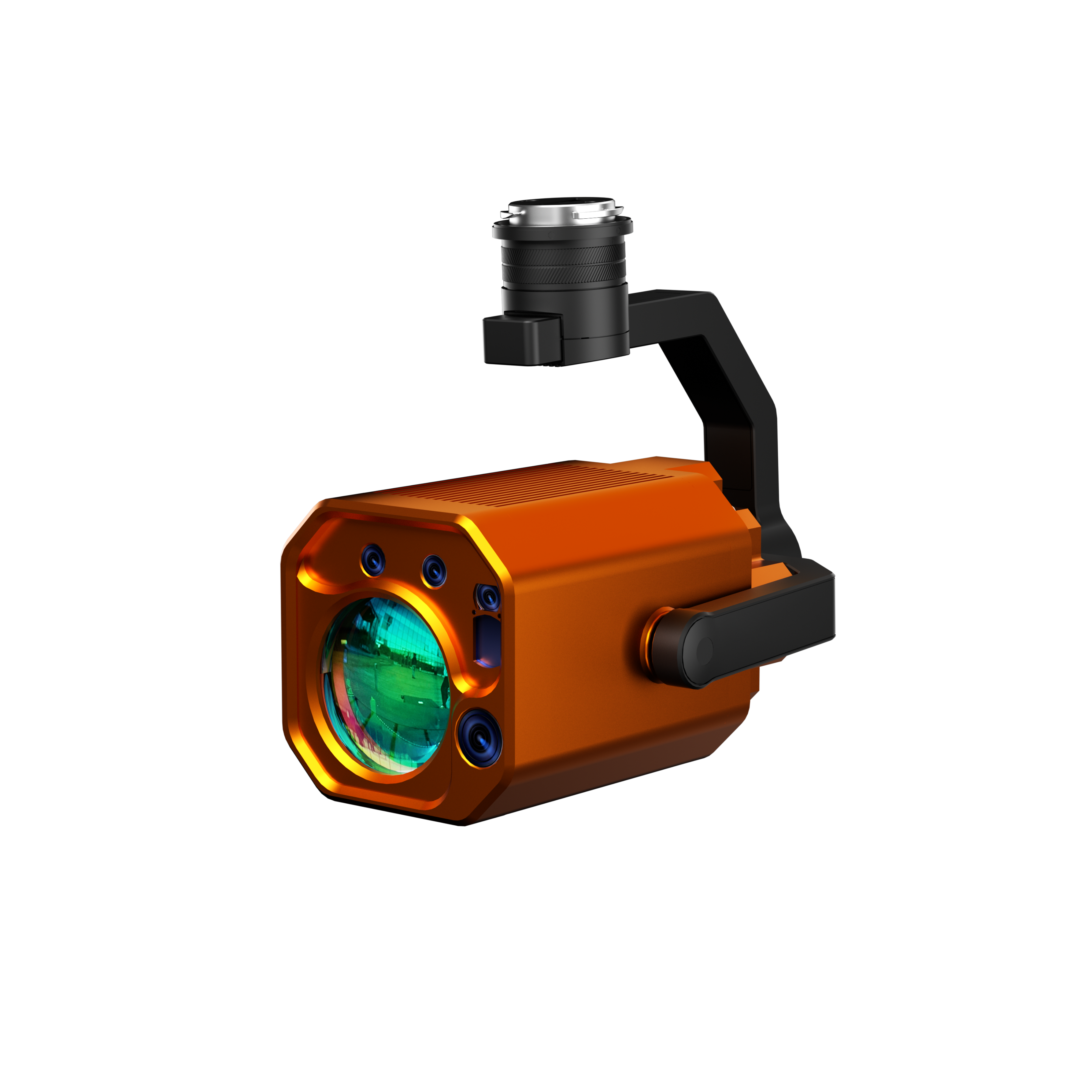

The BL-CH4 400 is a light-weight, high-sensitivity gas detector based on Tunable Dlode Laser Absorption Spectroscopy (TDLAS),which enables rapid identification of methane from up to 300m away, or at a concentration as low as 5ppm. m. The device cleverly combines the detection laser with the precise calibration of the visible light sensor to achieve accurate visual inspection; cooperating with the intelligent stabillzation control technology of the gimbal, it can quickly provide users with crucial information to help users grasp the opportunity, and improve the perception ability and operation efficiency to a new level.
Key Performance

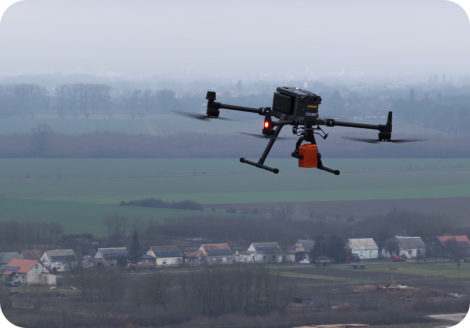

Equipped with a professional surveying and mapping lens, BL-CH4 400 has extraordinary performance during flight mission.
300m telemetry distance
5ms response speed
Precise locationof leak point
Monitoring data is sent tothe cloud in real time
Specification
Working Principle：TDLAS
Target Gas(es): CH₄
Supported Platforms: DJI M350/M400 and customization
Interface：X-Port
Gimbal Type: 3-axis stability enhancement (Pitch, Roll, Yaw)
Rotation Range: Pitch (+30°to-95°), Roll (±60°)
Camera: 13MP
Video Resolution: FHD 1920*1080 30P
Laser Rangefinder: Real-time Target Coordinates
Response Speed: 5ms
Sensitivity: 1ppm·m
Concentration Range: 0~99999 ppm·m
Accuracy: ±10% (100~50000 ppm·m)
Working Temperature: -20℃ to 50℃
Working Humidity: ＜ 95%RH (+25℃)
Detection Range:
300m (Test Conditions: 90% diffuse reflectivity target, 15,000 ppm·m CH₄ concentration, static level detection)
150m (Test Conditions: 90% diffuse reflectivity target, 15,000 ppm·m CH₄ concentration, static level detection)
Infrared Detection Laser: Class 3R (Avoid direct eye exposure)
Green Indication Laser: Class 3R (Avoid direct eye exposure)
IP Rating: IP55
Rated Current: < 1 A; Typical Supply Current @ 8 V: 0.3 A
Power Consumption: 2W
Weight: 770g (with gimbal)

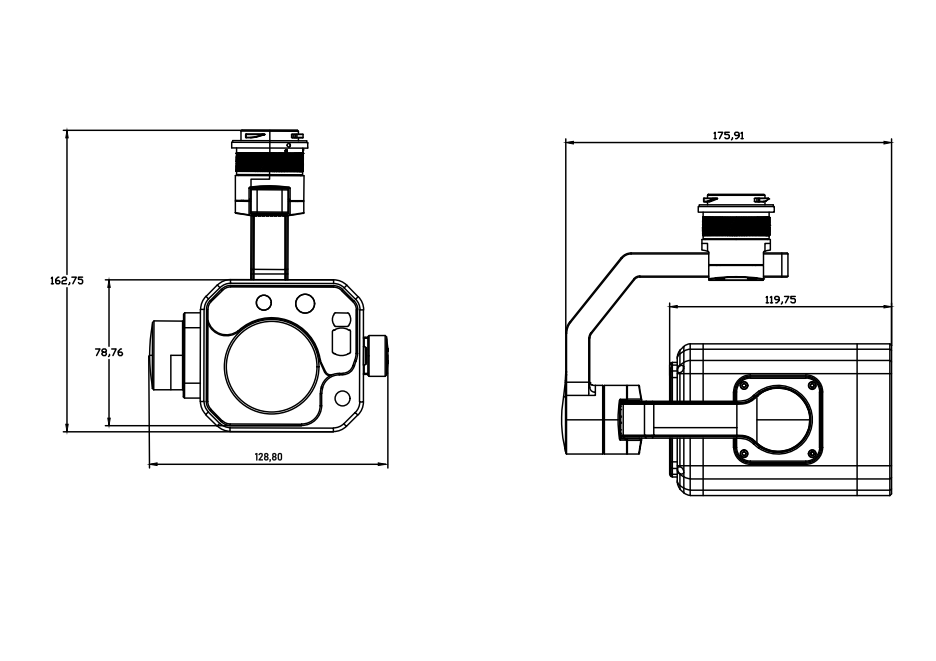

Size(L*W*H)：175.91mm*128.8mm*162.75mm (with gimbal)
Detection Range With Different Reflector Background Test
(varies due to different reflectivity and concentration)
FAQs
What versions are available for the BL-CH4 400?
Which flight platforms are compatible with BL-CH4 400?
What is the ingress protection rating of the BL-CH4 400?
Which gimbal position can the BL-CH4 400 be mounted on when using dual gimbal?
What is the minimum focusing distance of the visible-light camera?
Case Study

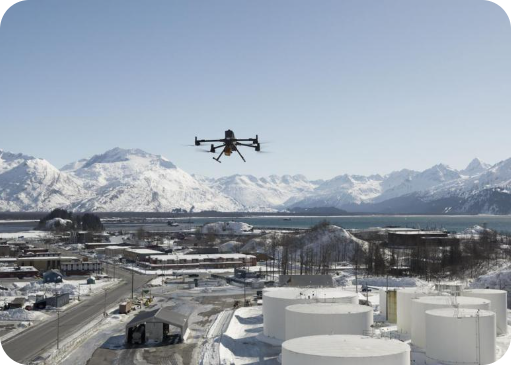

BL-CH4 400 Successfully Completed Extreme Cold Weather Methane Detection Testing at Valdez Oil Terminal, Alaska
Methane Inspection System Deployed for Oil & Gas Pipeline Monitoring in Yulin, Shaanxi
Methane Detector Deployed
at Refinery Facility in Hungary

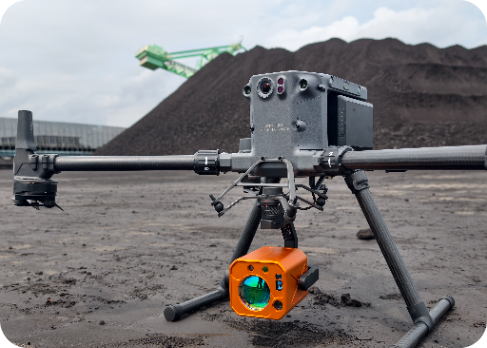

Methane Detection System Applied for Coal Stockpile Spontaneous Combustion Monitoring in Guangdong, China
Regulatory Alignment
Designed to support methane monitoring, emissions management,
and secure data workflows aligned with internationally recognized regulations and industry frameworks.
EU Methane Regulation
Regulation (EU) 2024/1787
Supports methane inspection workflows, LDAR documentation, and inspection record management.
OGMP 2.0
Oil & Gas Methane Partnership
Supports methane detection, emissions data collection, and reporting workflows.
GDPR
General Data Protection Regulation
Supports secure data management, role-based access control, and data governance workflows.
