Landfill, New Zealand
Project Background
Against the global push for carbon neutrality and methane emission reduction, landfills have become one of the key sources of greenhouse gas emissions requiring precise monitoring and management.
Methane emissions are highly impactful in terms of global warming potential, yet they are often diffuse, invisible, and difficult to quantify accurately using conventional monitoring methods. Traditional ground-based inspections and fixed-point detection systems struggle to provide full-area coverage and real-time, high-precision measurement.
In New Zealand, where environmental regulations are strictly enforced, large landfill operators face significant operational challenges, including insufficient monitoring coverage, safety risks associated with manual inspections, and limited capability to quantify emissions accurately for compliance reporting.
To address these challenges, the project deployed the BL-CH4 UAV-mounted TDLAS methane remote sensing system, supported by Shenzhen BLV Technology Co., Ltd, establishing an aerial, high-efficiency methane monitoring solution based on UAV-enabled laser sensing technology.
Solution
The project adopted an integrated solution combining UAV platform, TDLAS laser methane sensing, and data analytics system.
The BL-CH4 system is based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables highly selective methane detection using specific laser wavelengths. Combined with signal inversion algorithms, it allows accurate concentration retrieval while effectively minimizing interference from environmental factors such as humidity and dust.
Mounted on an industrial-grade UAV platform, the system enables large-area, non-contact, and dynamic methane monitoring during flight operations. Data is transmitted in real time to a ground control system and visualized through a GIS-based platform, generating methane concentration heatmaps for intuitive spatial analysis.
The solution also supports automated flight path planning and data processing, providing a reliable foundation for emission analysis, mitigation strategies, and regulatory reporting.
Project Implementation

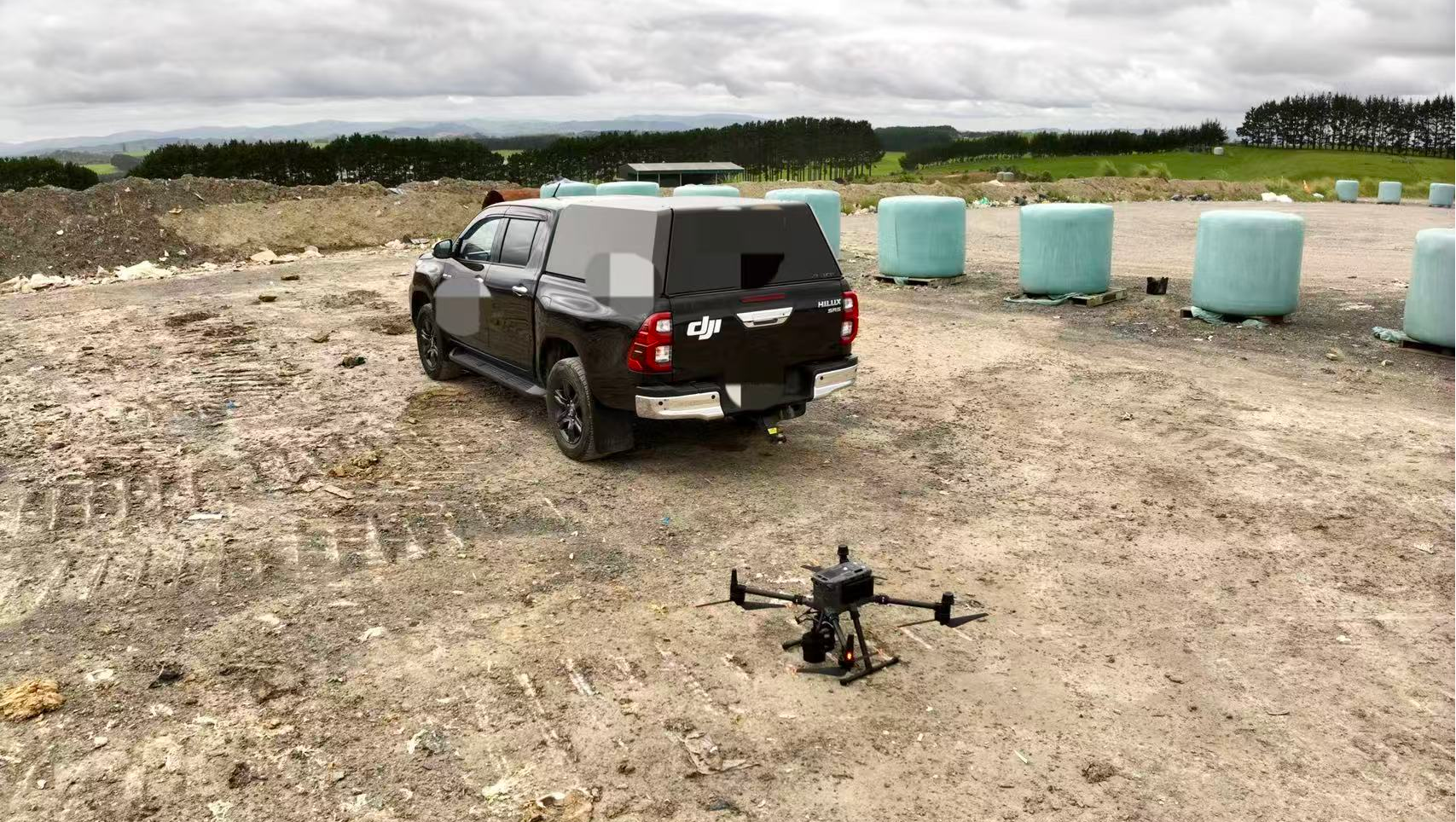

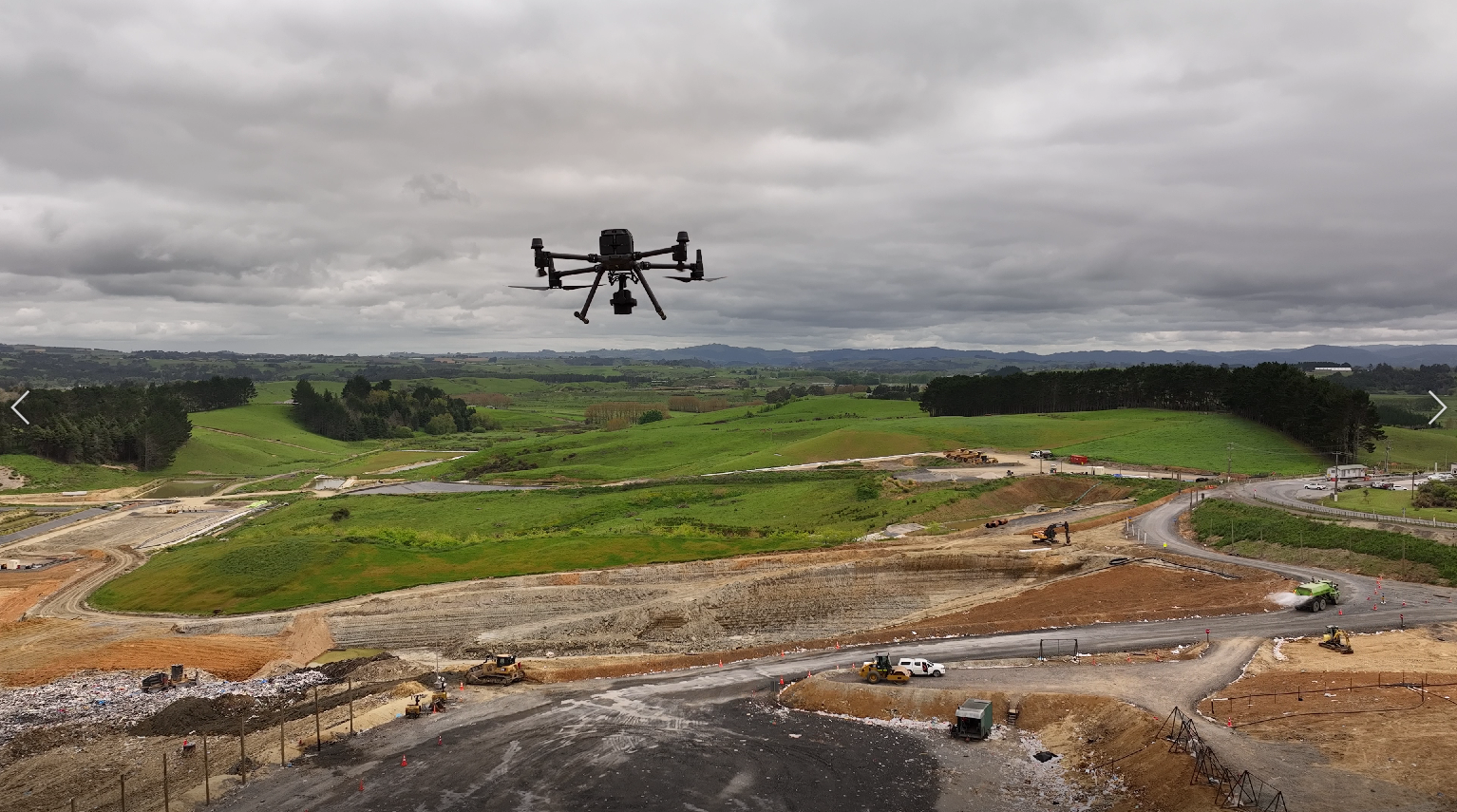

During field deployment, the UAV conducted systematic inspection flights across multiple key zones of the landfill site, including active waste disposal areas, gas collection zones, and perimeter regions.
Throughout the operation, the BL-CH4 system continuously performed methane concentration scanning and real-time data acquisition, enabling dynamic monitoring of emission distribution across the site.
The implementation primarily validated system performance under complex landfill conditions, including wide-area coverage capability, safety advantages of non-contact inspection, detection sensitivity for low-concentration methane signals, and data stability under varying dust and humidity conditions.
Test Results

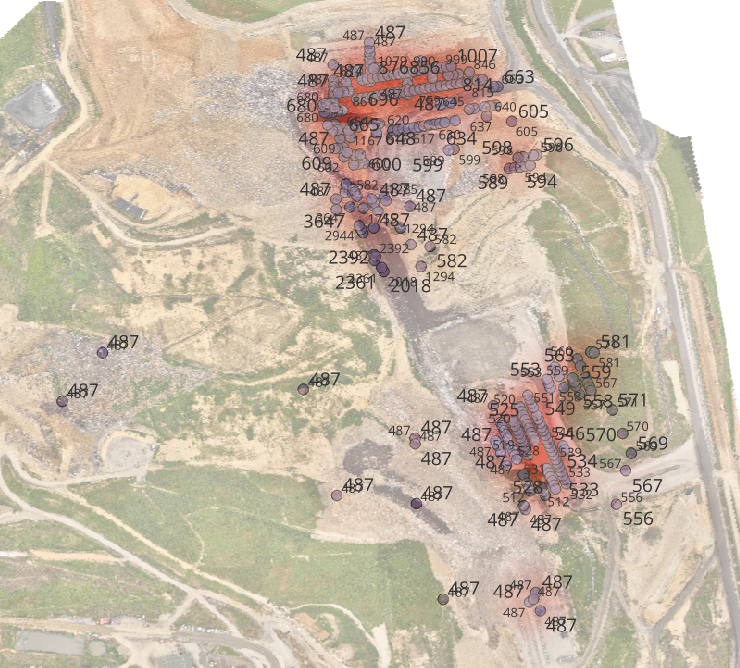

The system successfully completed multiple full-site scanning missions and consistently generated high-resolution methane distribution data and heatmaps.
During testing, methane concentration signals ranging approximately from 30 to 200 ppm·m were detected across multiple areas of the site. Based on field analysis, the project team determined that these low-concentration, widely distributed signals represent typical background methane emissions in landfill environments, rather than localized major leakage events.
Potential sources include natural emissions from waste decomposition, minor releases from gas collection systems, localized cover layer diffusion, and continuous operational background emissions.
Throughout the process, the system demonstrated stable detection of low-concentration methane signals, highlighting the high sensitivity and strong anti-interference performance of TDLAS laser sensing technology in complex environmental conditions.
Project Value
This project not only validated the stable performance of the BL-CH4 system in complex landfill environments but also demonstrated its capability for establishing methane emission baseline mapping.
Through continuous monitoring and long-term data accumulation, the system enables trend analysis of landfill methane emissions, supporting anomaly detection, early warning of potential leaks, emission optimization, and compliance with carbon accounting requirements.
From a system capability perspective, the solution significantly enhances monitoring safety and efficiency by replacing manual close-range inspections with UAV-based remote sensing, reducing personnel exposure risk while enabling broader coverage and higher inspection frequency.
Overall, the solution shifts landfill methane management from traditional “manual inspection and experience-based judgment” to a “data-driven and aerial monitoring” model, significantly improving operational intelligence and environmental management capability.
Conclusion
The successful deployment in a New Zealand landfill site demonstrates the reliability and practical performance of the BL-CH4 UAV methane remote sensing system in complex operational environments.
By integrating UAV platforms with high-precision TDLAS laser methane sensing technology, the solution provides a safer, more efficient, and highly visualized approach to methane monitoring for landfill operations worldwide.
In the future, this technology is expected to be further applied across a wider range of environmental and industrial emission scenarios, continuously supporting global methane reduction and low-carbon development initiatives.
